Transfer switches and installation

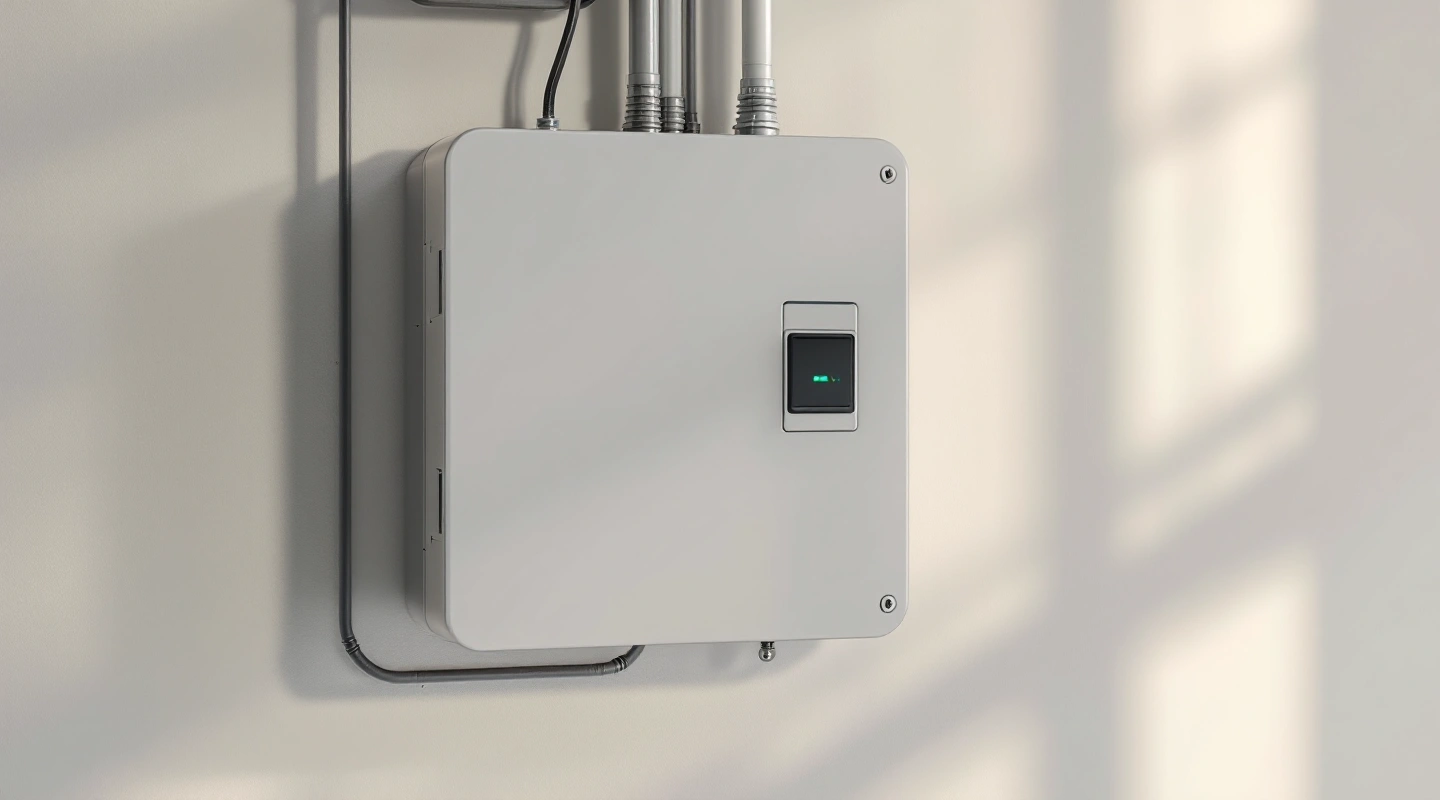

What is a generator transfer switch

A generator transfer switch controls which source feeds certain home circuits. One source is the grid. The other is a generator. Its key job is to keep those two sources apart.

A generator transfer switch is a selector between grid power and a generator. It keeps the two sources isolated and connects chosen circuits to one source at a time. A manual switch needs a person to change it. Automatic operation removes that step, but it depends on the exact generator, switch, panel and maker papers.

Scroll for more →

How a generator transfer switch isolates the utility

Generac's home connection guidance says manual transfer gear keeps grid and generator power apart. The switch does not make electricity. It does not add capacity either. It only picks the source for the circuits wired to it.

Here is a simple flow:

Utility power -> [Transfer switch] -> Chosen circuits
Generator     -> [Transfer switch]
Only one source feeds those circuits at a time.

CPSC says never to backfeed power through a wall outlet. A transfer switch or an accepted interlock is the source separation path. An interlock must be listed and accepted for the exact panel and local rules. Our generator interlock vs transfer switch guide compares them.

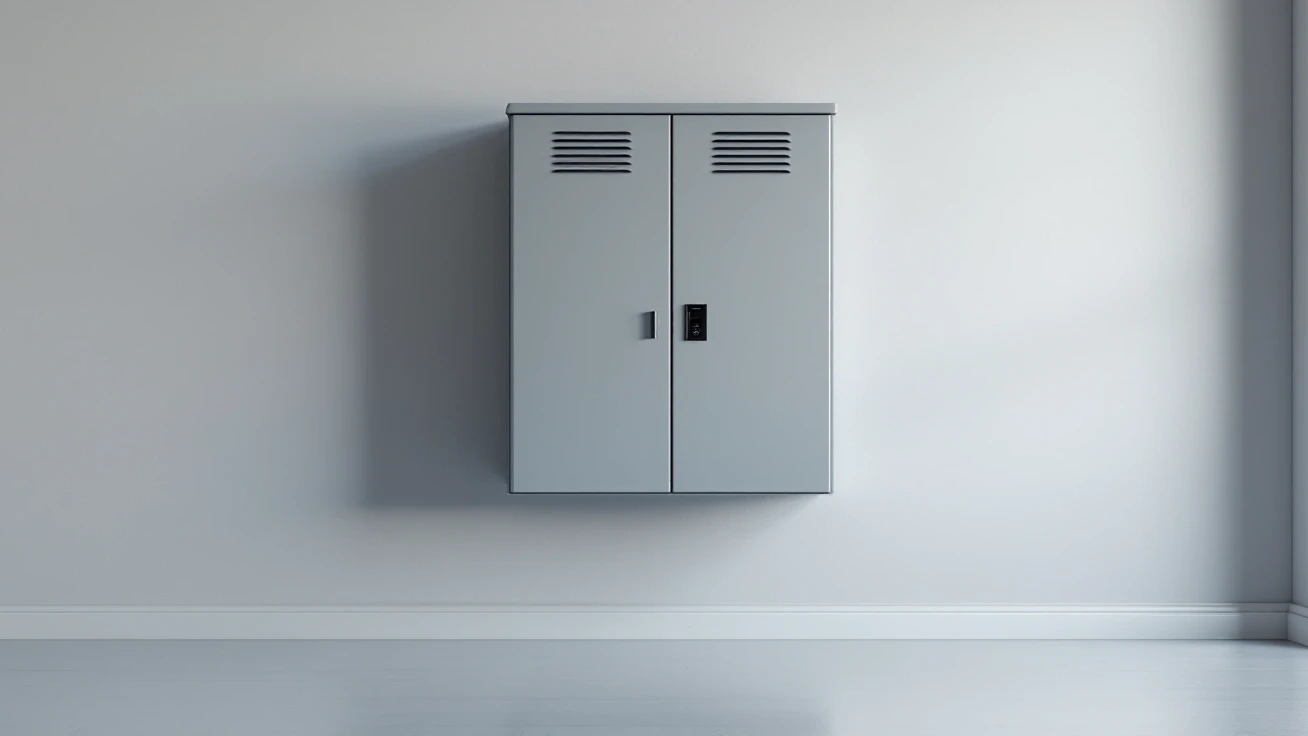

Manual versus automatic transfer switch operation

A manual switch needs someone to move it. It stays in that state until switched again. The Reliance 306CRK kit is one example. It covers six circuits at 30 A.

The box includes a switch, inlet and cord. Those parts still need to match the home.

An automatic switch changes the source through its controls. It needs a matched generator that can receive its signals. The KOHLER 20RCA lists a switch sold separately. Check the exact order before relying on that feature.

What the switch does not settle

Power ratings alone do not prove a fit. Check voltage and each part in the path. The source, switch, inlet and panel must match. An adapter cannot create missing voltage.

Check the exact manuals for your circuits too.

Engine generators need safe placement, even with automatic switching. CPSC says to run portable engine generators outdoors, at least 20 feet from homes. Point exhaust away. Never run one indoors or in a garage, even with doors open.

Standby clearances come from that unit's manual and local rules. Install belongs to licensed electricians.

Sources and limits

We used maker pages and CPSC guidance. This page explains concepts only. It does not list panel steps or a full fit result. For budgets, see our generator transfer switch install cost guide.

FAQs

Does a transfer switch work with any generator? No. The unit and switch must match. Check the inlet and panel too. They must suit the chosen circuits. Voltage and plug type matter. An adapter cannot add a voltage the generator does not supply. Westinghouse states its iGen2550DFc is not transfer-switch-ready, so check each model's own papers.

Does a transfer switch add power? No. A transfer switch only chooses which source feeds the connected circuits. It does not make electricity or raise generator capacity. The generator's running and starting ratings still limit what loads can run. Check those ratings against your exact loads before any decision.

Can a portable generator use automatic switching? Sometimes. Westinghouse describes pairing its WGen11500TFc with a specific WATS200 automatic transfer system. That pairing does not cover other models. Follow the WATS200 manual for the system's full needs, and use the exact maker papers for any setup you consider.

Can I install a transfer switch myself? Generac says install and service belong to licensed electricians. Follow product instructions and local codes. Do not modify wiring, neutrals or protection devices yourself. Have an electrician check the whole path. The unit and switch must match the panel and circuits.

Primary documents

• CPSC portable engine generator placement
• Westinghouse iGen2550DFc exact US specifications
• Westinghouse WGen11500TFc US product specification
• KOHLER 20RCA current specification
• Reliance Controls six-circuit transfer kit
• Generac home connection safety

What Is a Generator Transfer Switch Verdict

What is a generator transfer switch? A transfer switch keeps grid and generator power isolated. It feeds chosen circuits from one source at a time. Choose manual operation if someone can switch it during an outage.

Consider automatic operation only with exact matched papers. Either way, have licensed trades handle the install.
