Generator transfer switch installation cost

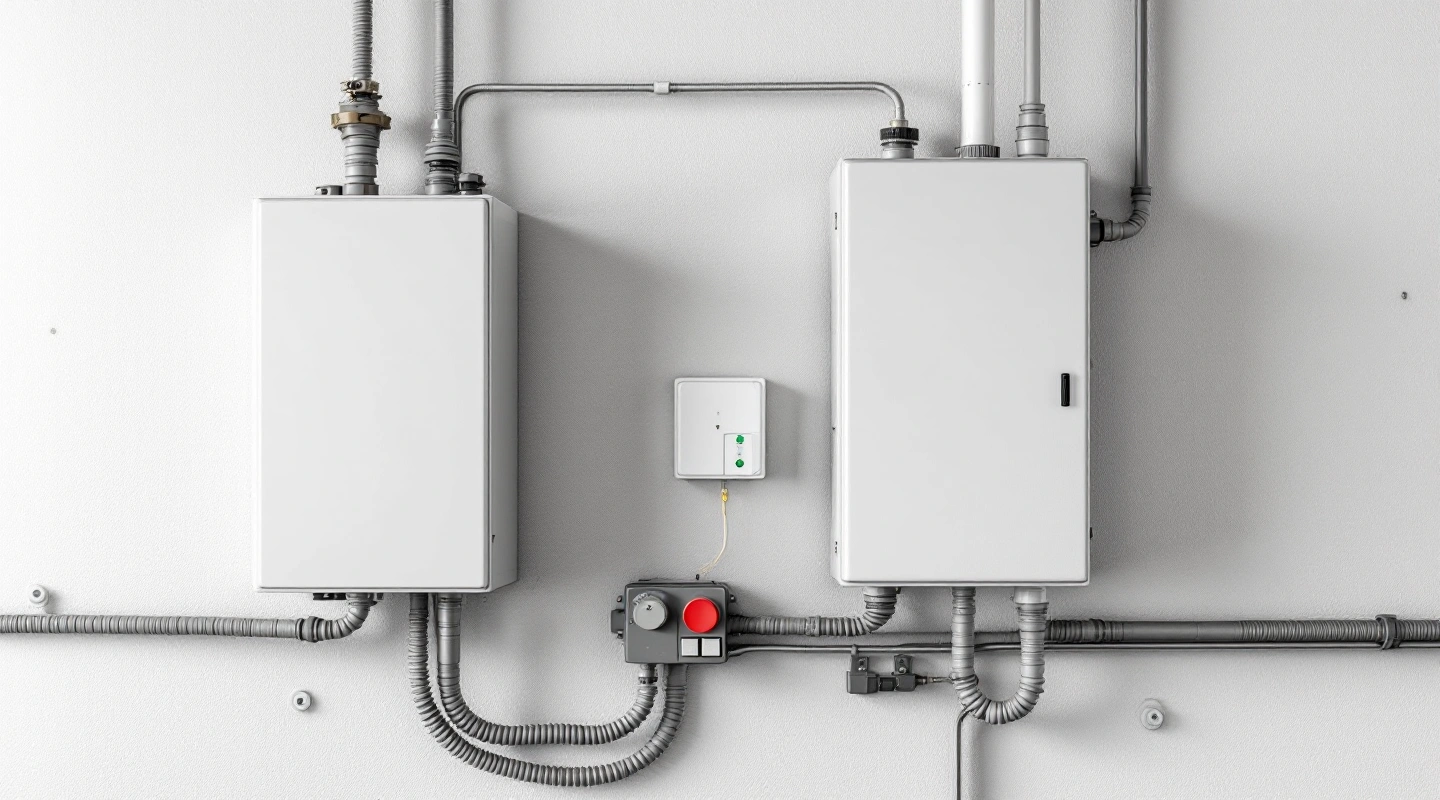

Two closed wall-mounted enclosures in a utility area.

The short answer

Generator transfer switch installation cost: No primary source here gives a switch-only price. Your quote depends on circuit count, panel fit, inlet location, local permit rules, and manual or automatic operation. Generac's published $8,000 to $16,000 range covers a full standby project, including the generator. It is not a price for switch-only work.

Last updated October 2026

What's covered12

Two kinds of numbers get mixed up in cost searches. One is for switch-only work. The other is for a full standby generator project. This guide keeps them apart.

It explains what changes the scope of each job.

No manufacturer document we checked lists an installed price for a transfer switch. Your quote will depend on circuit count, panel fit, inlet location, local permit rules, and manual or automatic operation. Generac publishes $8,000 to $16,000 for a full standby project. That figure includes the generator, so it cannot price switch-only work.

Generator transfer switch installation cost: published national reference

HomeGuide's national guide lists $400 to $1,300 for a manual switch installed. It lists $600 to $2,500 for an automatic switch installed. Its displayed publication date is April 5, 2023. Treat those as dated publisher estimates, not current local quotes or technical specifications.

They include the switch and labor.

The manufacturer's documents below serve a different purpose. They establish ratings and kit contents. They do not establish local installed prices. Keep cost-publisher numbers separate from electrical safety evidence.

Get a written quote for your exact panel and scope. Permits and unusual site work stay unpriced until a local source supplies them. A complete new standby system is a larger budget than switch-only work.

Generator transfer switch installation cost drivers at a glance

This table compares the scope questions behind a quote. It describes scope; the separate dated national estimate above gives budget context.

Cost driver What the source shows What it does not show
Bundled standby project Generac lists $8,000 to $16,000, including generator, equipment, materials and installation A switch-only price or a local quote
Six-circuit manual kit Reliance 306CRK: 30 A, six circuits, 306C switch, PB30 inlet, PC3010 ten-foot cord Fit with your panel
Pre-wired manual kit Generac HomeLink 6853: 30 A, pre-wired, possible upgrade subject to system requirements Automatic function or universal fit
Single-circuit switch Reliance TF152W: 125 V, 15 A, one circuit, NEMA 5-15 inlet, 1,875 W maximum generator running watts Which appliances it can serve
Standby with separate switch KOHLER 20RCA: automatic transfer switch sold separately on a listed option Your exact order configuration
Panel and design match Generac: generator, switch, inlet, panel and circuit design must match A do-it-yourself path

If you are new to the hardware, start with what is a generator transfer switch.

Switch-only work versus a bundled standby project

A transfer switch keeps utility power and generator power apart. Generac says manual transfer equipment isolates the two sources. It also says the generator, switch, inlet, panel and circuit design must match. Installation and service belong to licensed electrical trades.

A switch-only job buys a narrow piece of that system. The kit contents show what hardware is in the box. They do not show the labor needed for your house.

A bundled standby project is much larger. Generac publishes an indicative US total of $8,000 to $16,000. That range includes the generator, system equipment, materials and installation. Generac does not show a publication date on that page.

This is manufacturer guidance. It is not an independent national median, and it is not a quote. Generac also notes that location, fuel line, site and permit scope change the real total. So keep this number for full projects only.

Do not subtract parts from it to guess a switch price.

Manual or automatic operation

The Reliance 306CRK and Generac HomeLink 6853 are manual 30 A kits. Generac's support article lists an upgrade path for standby units up to 11 kW. System fit must be checked; the manual kit alone does not provide automatic switching.

Automatic operation is a different scope. KOHLER lists an automatic transfer switch as sold separately on a listed option for the 20RCA. If you buy that standby unit, the switch may be a separate line item. The exact order documents must confirm what you are getting.

Automatic setups are not only for standby units. Westinghouse's current WGen11500TFc page describes pairing that portable with its WATS200 automatic transfer system. This guide does not compare that system's full requirements. So we cannot say what that pairing needs in your home.

Read more in what is an automatic transfer switch.

Automation does not change placement rules. Any engine generator still needs safe outdoor placement. A portable engine follows CPSC distance guidance. A standby unit follows its own manual and local rules.

Panel compatibility

Panel fit is a separate question from the switch itself. Generac says the panel and circuit design must match the rest of the system. An interlock must also be listed or accepted for your exact panel and local rules.

That means a kit cannot be judged in a store aisle. Its amp rating and circuit count are only part of the answer. An electrician must check your panel against the product instructions. If the panel and the kit do not match, the scope changes.

Voltage is another fit check. The TF152W is rated 125 V. That is a component rating, not a voltage for every appliance. A basic adapter cannot create a voltage the generator does not produce.

Some portables put out 120 V only. Honda lists the EU3000iS at 120 V, 2,800 W rated and 3,000 W maximum. A 120 V output does not rule out every transfer system. But it must match the switch, inlet and circuits you plan to use.

An RV outlet is not proof of approved home use. Westinghouse lists the iGen2550DFc with a TT-30R outlet. It also says that unit is not transfer-switch-ready.

Circuit count

Circuit count decides which switch can even be used. The TF152W serves one circuit. The 306CRK serves six. These are very different jobs.

Each added circuit adds work at the switch and the panel. So a six-circuit job has more scope than a one-circuit job. The documents do not give a dollar amount for that difference.

The switch does not raise generator output. The TF152W lists 1,875 maximum generator running watts. That is a limit for the switch, not a promise about any appliance. To know if a load fits, you need its running watts, starting watts, voltage, receptacle type and how long it must run.

Startup load needs care. Let R be all running watts that run at the same time. If one motor starts at a time, add the largest gap between starting and running watts for one unit. If motors can start together, add every gap.

Count each motor's running watts once, inside R.

Watts also differ from other units. Volts times amps gives volt-amps, not watts, unless power factor is known. Watt-hours measure stored energy, not power.

Inlet location and generator placement

The inlet location affects how much wiring the job needs. A longer run between inlet, switch and panel is more work. Your electrician sets that route.

Where the generator sits shapes the inlet spot. CPSC says to run portable engine generators outdoors at least 20 feet from homes. Point the exhaust away. Never run one indoors or in a garage, even with the doors open.

That placement can affect cord needs. The 306CRK includes a ten-foot cord. Check how that cord length fits your planned inlet and generator spot. Do not move the generator closer to save cord.

CPSC also says to use a dry surface. Follow the manufacturer's exact rules for rain operation. Shut the engine down and let it cool before refueling. Never touch it with wet hands, and never backfeed a wall outlet.

Use CO alarms, and get to fresh air if one sounds or you feel sick.

Standby units are different. Their clearances come from their own manual and local rules. Do not apply the portable distance to a standby pad.

Permits and licensed work

Generac says to follow product instructions and local codes. It says licensed electrical trades handle installation and service. That makes permit rules a local cost factor.

Some places may require a permit. Others may set different steps. Ask your local building office what applies to your job.

Do not plan any home wiring yourself. That includes panel changes, neutral changes or gas work. Do not bypass any protection. Standby projects with a fuel line also need the right licensed trade.

Fuel and generator capacity

Fuel choice does not change switch hardware. It can change how much power the generator delivers. That affects which circuits make sense to back up.

Generac lists the Guardian 26 kW at 26 kW on propane. It lists 22.5 kW on natural gas. It is rated 240 V.

KOHLER rates the 20RCA at 20 kW on LP and 18 kW on natural gas. Cummins lists the RS20A at 20 kW on LP and 18 kW on natural gas.

Some portables run on three fuels. The Champion 201176 lists 7,250 W on gasoline, 6,525 W on propane and 5,875 W on natural gas. It offers 120/240 V output.

The current DuroMax XP13000HXT manual lists 10,500 W running on gasoline, 10,000 W on propane and 9,000 W on natural gas. It lists 120/240 V output. Check the transfer equipment and chosen-fuel output separately.

Match your unit's label and manual revision before sizing loads. Starting watts do not promise a motor will start or state how long peak output lasts.

These are listed ratings only. Fuel pressure and flow are a separate check. You cannot work them out from electric watts. Gasoline supply can also vary by area.

Generator transfer switch installation cost: source method and limits

Technical and safety sources are manufacturer documents or official guidance. The separately labeled price reference is a national cost publisher. They include Generac, Reliance Controls, KOHLER, Cummins, Honda, Champion, Westinghouse, DuroMax, CPSC and the US Department of Energy.

The main limit is clear. No source here gives a switch-only installed price. The dated cost-publisher range above supplies budget context. It does not replace a local quote.

Kit sheets show contents and ratings. They do not prove fit with your panel. Generator specs show output. They do not complete a compatibility check.

Your exact panel, inlet route, permit rules and product instructions settle the real scope.

FAQs

Does transfer switch installation cost include the generator?

Not for switch-only work. That scope covers the switch, inlet and connection work. Generac's $8,000 to $16,000 range covers a full standby project. It includes the generator, system equipment, materials and installation.

It is manufacturer guidance, not a quote. Do not use it to price a switch by itself.

Why does circuit count matter for the price?

Circuit count decides which switch fits. The Reliance TF152W serves one circuit. The Reliance 306CRK serves six. More circuits mean more work at the switch and panel.

Our sources give no dollar figure for that change. A licensed electrician can scope it against your panel and local rules.

Is an automatic switch a different job than a manual one?

Yes, the scope differs. A manual switch needs a person to move it. KOHLER lists an automatic switch as sold separately on a listed option for the 20RCA. Westinghouse pairs one portable with its WATS200 system.

We did not compare full requirements, so confirm with exact product documents.

Can a portable generator sit close to the inlet?

CPSC says portable engine generators must run outdoors at least 20 feet from homes. Point exhaust away. Never run one in a garage, even with doors open. Plan the inlet and cord around that distance.

Standby units follow their own manual and local rules, not the portable distance.

Primary documents

Generator transfer switch installation cost Verdict

Generator transfer switch installation cost: No primary source here sets a switch-only price. Your quote depends on circuit count, panel fit, inlet location, permit rules and operation type. A one-circuit manual job is a narrower scope than a multi-circuit or automatic job.

If your quote bundles a new standby generator, compare it with Generac's full-project range. Treat that range as guidance only. If you only need the switch, ask for a switch-only quote from a licensed electrician.
